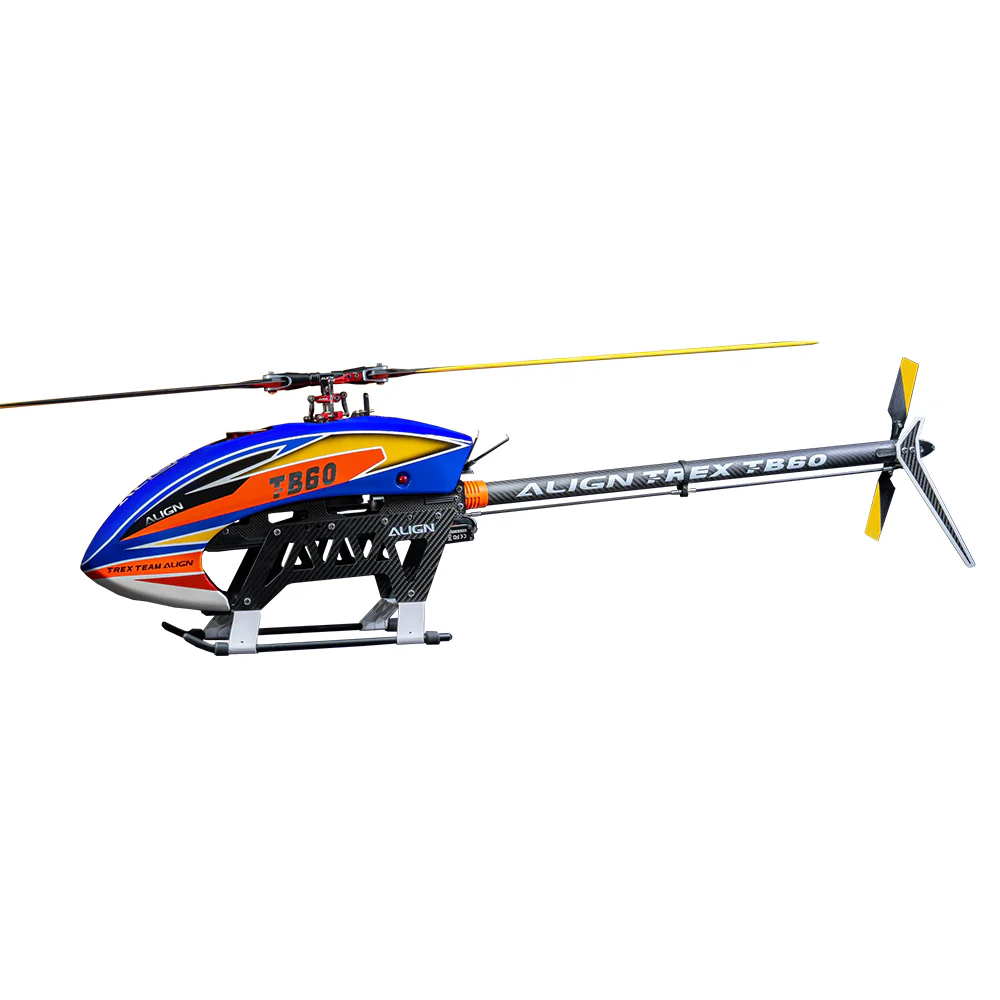

Align TB60 Helicopter Kit Only

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Specification

    ●Length: 1218mm
    ●Height: 353mm
    ●Width: 183mm
    ●Main Blade Length: 600mm
    ●Main Rotor Diameter: 1339mm
    ●Tail Length: 95mm
    ●Tail Rotor Diameter: 253mm
    ●Motor Belt Pulley: 23T
    ●Belt Pulley: 44T
    ●Front Drive Main Shaft: 15T
    ●Main Drive Gear: 62T
    ●Autorotation Tail Drive Gear: 28T
    ●Tail Drive Gear: 23T
    ●Drive Gear Ratio: 7.89:1:5.04
    ●Max RPM(approx.): 2400RPM
    ●Weight: Approx. 1.8kg


    Accessories

    ●TB60 Kit Set x 1 set
    ●600 Carbon Fiber Blades x 1 set
    ●95 Carbon Fiber Tail Blades x 1 set
    ●Lube Pack x 1
    ●An Extra set of 600 Carbon Fiber Blade (while supplies last)


    Radio transmitter and electronic equipment required for assembly

    ●Transmitter(6-channel or more, helicopter system)
    ●Receiver(6-channel or more) or Remoet Receiver
    ●RCC-6CX Intelligent Balance Charger
    ●6S Li-Po 2600 ~ 5200mAh (3300mAh suggestion)
    ●Digital Pitch Gauge
    ●Multi-function Tester
    ●Flybarless System
    ●Brushless Motor x 1
    ●CCPM Brushless Servo x 3
    ●Rudder Brushless Servo x 1
    ●Brushless ESC x 1
